ROLLCLIP Z is a pulley-carabiner with a gate opening on the non-pulley side to facilitate installation on anchors and devices. It is available in two locking systems: automatic TRIACT-LOCK system or manual SCREW-LOCK system.
ROLLCLIP Z
• Easier handling:
- sheave mounted on sealed ball bearings for excellent efficiency

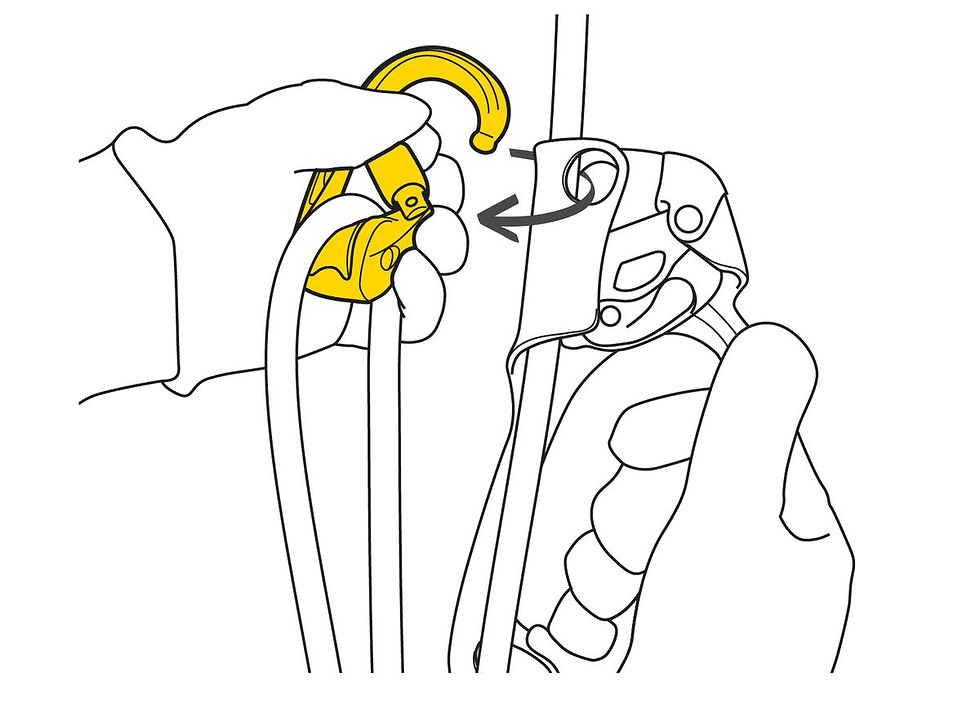

- gate opening on the non-pulley side, to facilitate installation on devices
- Keylock system prevents any accidental snagging of the carabiner when putting the pulley in place
• H cross-section of carabiner:
- ensures an improved strength-to-weight ratio
- protects markings from abrasion
• Two locking systems available:
- TRIACT-LOCK: automatic locking with triple-action gate opening
- SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked• Material(s): aluminum
• Min. rope diameter: 7mm
• Max. rope diameter: 13mm
• Sheave diameter: 18mm
• Maximum working load: 2 x 2 = 4kN
• Efficiency: 85%
• Major axis strength: 20kN
• Minor axis strength: 8kN
• Open gate strength: 7kN
